*Illustrations on the page were prepared in metric units. Projects ordered to the United States will be prepared in feet. Waiting time for the project may be extended by several days

Barn House T 2

Size L [209-270m2]

775

  • Usable area:194,94 m²
  • Garage area:40,13 m²
  • Development area:250,54 m²
  • Height of the building at the ridge:6,27 m
  • Roof pitch:35°
More parameters >

Choose a plan version:

Learn more >

Choose a package type:

Basic package

Concept of the project

775

Learn more >

Full package

Complete project documentation

20195

Learn more >

Select the project version that fits your plot. All our projects are available in two versions: standard and mirror

Clear
Lead time: 3 days

Ready project being translated – extended waiting time. If time is crucial to you, please contact us after placing your order to confirm the current project delivery date.

Questions or want to customize the project? Contact us. Go to → Contact

The project price includes:

PROJECTS OPTIMIZED FOR CONSTRUCTION AND ENERGY EFFICIENCY

750 $0 $

PROJECT ADAPTED FOR AIR SOURCE HEAT PUMP AND UNDERFLOOR HEATING

750 $0 $

PROJECT WITH MECHANICAL VENTILATION AND HEAT RECOVERY

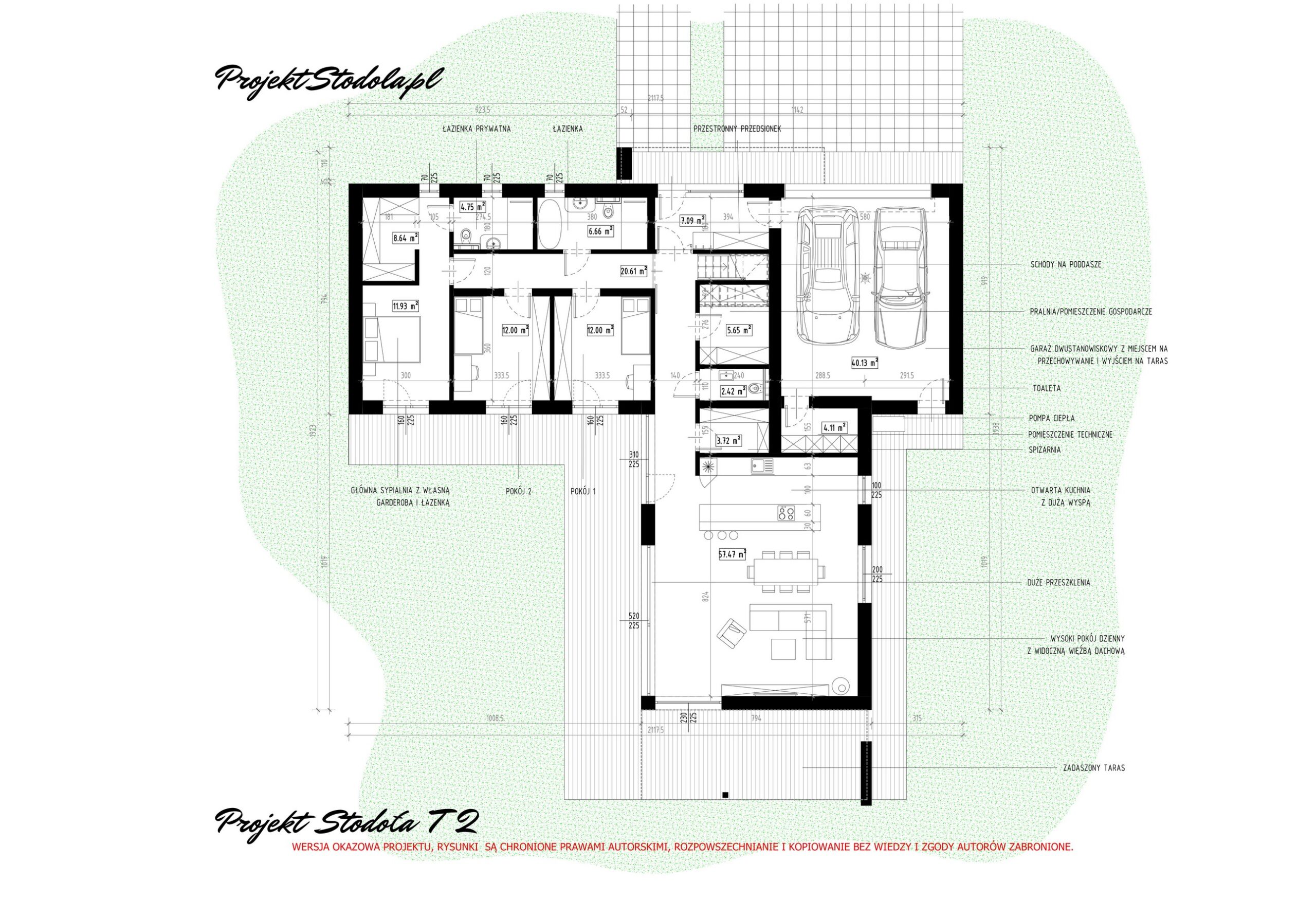

HOUSE PLANS:

SECTIONS:


FUNCTIONAL LAYOUT:

The Barn House T is an ideal project for those who appreciate a thoughtful, intuitive functional layout. The comfortable space is arranged on the plan of two perpendicular barns. The layout of the two volumes effectively divides the interior space into public and private areas, with all rooms having access to the garden and recreational part of the plot. Additionally, the building layout provides privacy for the recreational area by “shielding” it from two sides, creating a cozy space accessible from the living room and every bedroom in the house. The building layout is easily modifiable, allowing for the extension or reduction of individual wings of the building.

Entering the building from the longer side, we find a large vestibule illuminated by a large glazing. The entrance doors are covered, and the canopy shelters most of the entrance area, allowing for easy movement between the house and the garage, even in unfavorable weather conditions. The garage is directly connected to the vestibule. Exiting the vestibule, we enter a corridor that leads to the day zone and contains stairs to the attic. The private zone is located in the side wing.

Along the corridor, there are a laundry room and a toilet. The day zone features a spacious kitchenette with a pantry, a dining area with lighting from two sides, and a cozy seating area with a fireplace or a stove.

The entire sleeping area is closed off with sliding doors for enhanced privacy. Two bedrooms have access to a spacious bathroom with both a bathtub and a comfortable shower. The master bedroom, located at the end of the corridor, has its own bathroom and a walk-in closet. All three bedrooms have large windows with the option of accessing the terrace.

The two-car garage includes storage space and an exit to the terrace. From the garage, you can also access the utility room.

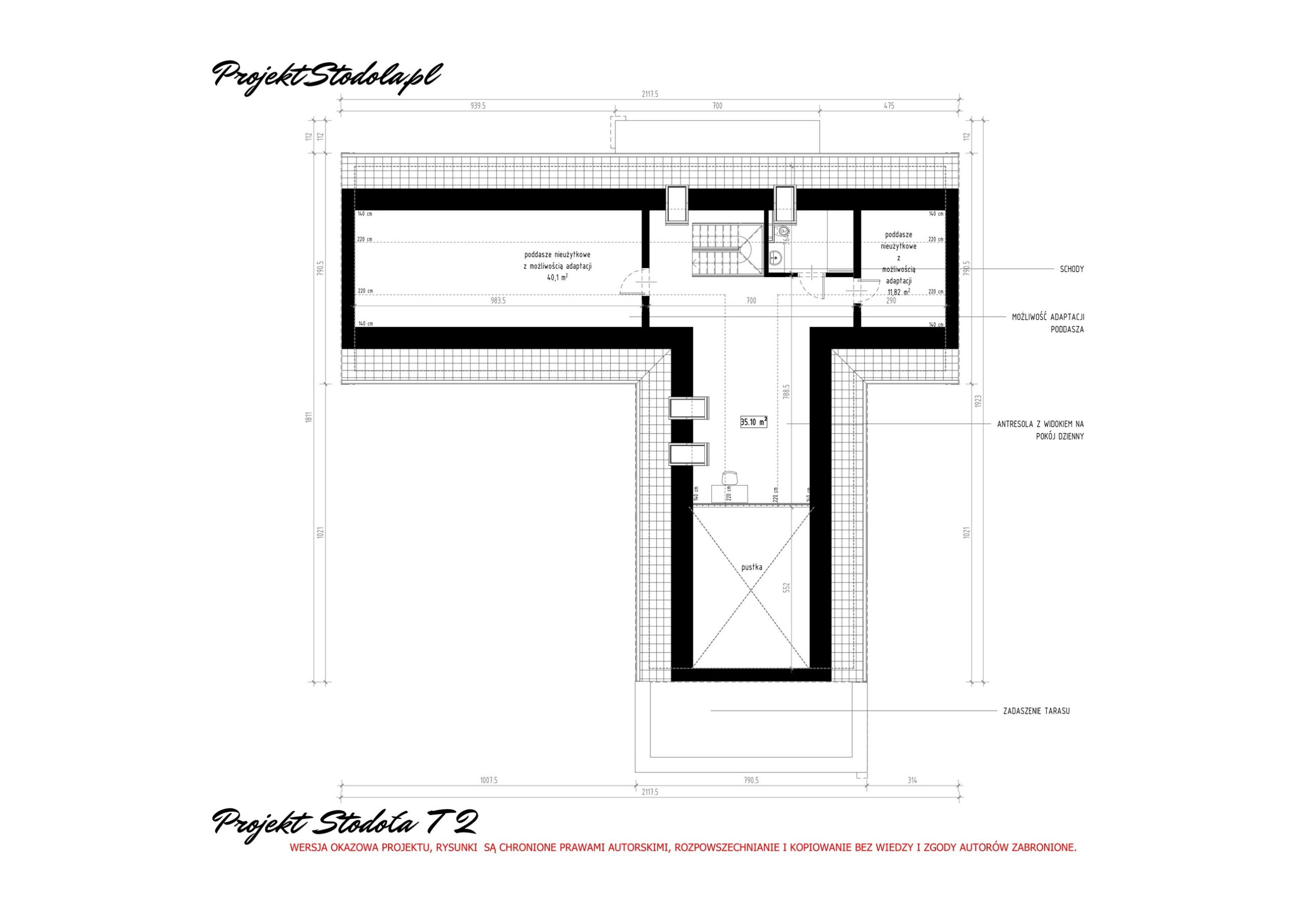

The attic has a usable ceiling and offers ample design possibilities. Depending on changing needs, it can serve as an office, a playroom on the mezzanine, or a guest space. It can also be fully arranged for residential purposes.



HOUSE PLANS:

SECTIONS:


FUNCTIONAL LAYOUT:

The Barn House T is an ideal project for those who appreciate a thoughtful, intuitive functional layout. The comfortable space is arranged on the plan of two perpendicular barns. The layout of the two volumes effectively divides the interior space into public and private areas, with all rooms having access to the garden and recreational part of the plot. Additionally, the building layout provides privacy for the recreational area by “shielding” it from two sides, creating a cozy space accessible from the living room and every bedroom in the house. The building layout is easily modifiable, allowing for the extension or reduction of individual wings of the building.

Entering the building from the longer side, we find a large vestibule illuminated by a large glazing. The entrance doors are covered, and the canopy shelters most of the entrance area, allowing for easy movement between the house and the garage, even in unfavorable weather conditions. The garage is directly connected to the vestibule. Exiting the vestibule, we enter a corridor that leads to the day zone and contains stairs to the attic. The private zone is located in the side wing.

Along the corridor, there are a laundry room and a toilet. The day zone features a spacious kitchenette with a pantry, a dining area with lighting from two sides, and a cozy seating area with a fireplace or a stove.

The entire sleeping area is closed off with sliding doors for enhanced privacy. Two bedrooms have access to a spacious bathroom with both a bathtub and a comfortable shower. The master bedroom, located at the end of the corridor, has its own bathroom and a walk-in closet. All three bedrooms have large windows with the option of accessing the terrace.

The two-car garage includes storage space and an exit to the terrace. From the garage, you can also access the utility room.

The attic has a usable ceiling and offers ample design possibilities. Depending on changing needs, it can serve as an office, a playroom on the mezzanine, or a guest space. It can also be fully arranged for residential purposes.



MAIN PARAMETERS OF THE BUILDING:

BARN HOUSE T 2 (235,07 m²)

      • Usable area:                                                    194,94 m²
      • Usable area of the garage                                40,13 m²
      • Development area                                          250,54 m²
      • Height of the building at the ridge                   6,27 m
      • Roof pitch                                                                 35 st.
      • Roof area of the building                              290,61 m²
      • Width of the building with the garage                     21,18 m
      • Length of the building                                            19,23 m
      • Heating – heat pump, underfloor heating.




DESIGN ASSUMPTIONS:




FORM:

A simple, modern single-story house in the shape of the letter T, covered with a symmetrical, dual-pitched roof with a slope angle of 35°. The building’s elevations are executed in a classic style with red brick combined with dark sheet metal partially descending onto the facade. The building’s form is complemented by front canopies and a terrace roof on the garden side. There is an option to customize the materials to align with the local context or the investor’s individual preferences.

The building has a straightforward structural layout based on two rectangles and four main axes, a dual-pitched roof, and a reinforced concrete slab.

Due to its T-shaped floor plan, the building is suitable for virtually any plot in terms of urban planning. The ideal orientation is with the entrance from the north, east, or west. Modifying the garage entrance to the side is also a good option for plots with a southern entrance.




BUILDING STANDARD AND CONSTRUCTION TECHNOLOGY

The building is designed in an energy-efficient standard compliant with the Technical Conditions of 2021, including underfloor heating provided by an air-source heat pump and mechanical ventilation with heat recovery.

MASONRY WALLS: Double-layered – cellular concrete blocks + graphite EPS insulation, silicate partition walls

FACADE: Red brick and standing seam metal cladding

SLAB: Reinforced concrete slab

STAIRS: Modular system

ROOF: Standing seam metal roof on a solid decking

Additionally, the simple roof design allows for the installation of integrated photovoltaic systems as well.



MINIMUM PLOT DIMENSIONS:

Due to the shape of the T-shaped building plan, the building can be situated on practically any plot in two variations. The ideal orientation is with the entrance from the north, east, or west. Modifying the garage entrance to the side is also a very good option for plots with a southern entrance. When reducing the garage to one parking space, the design is suitable for narrower plots as well.

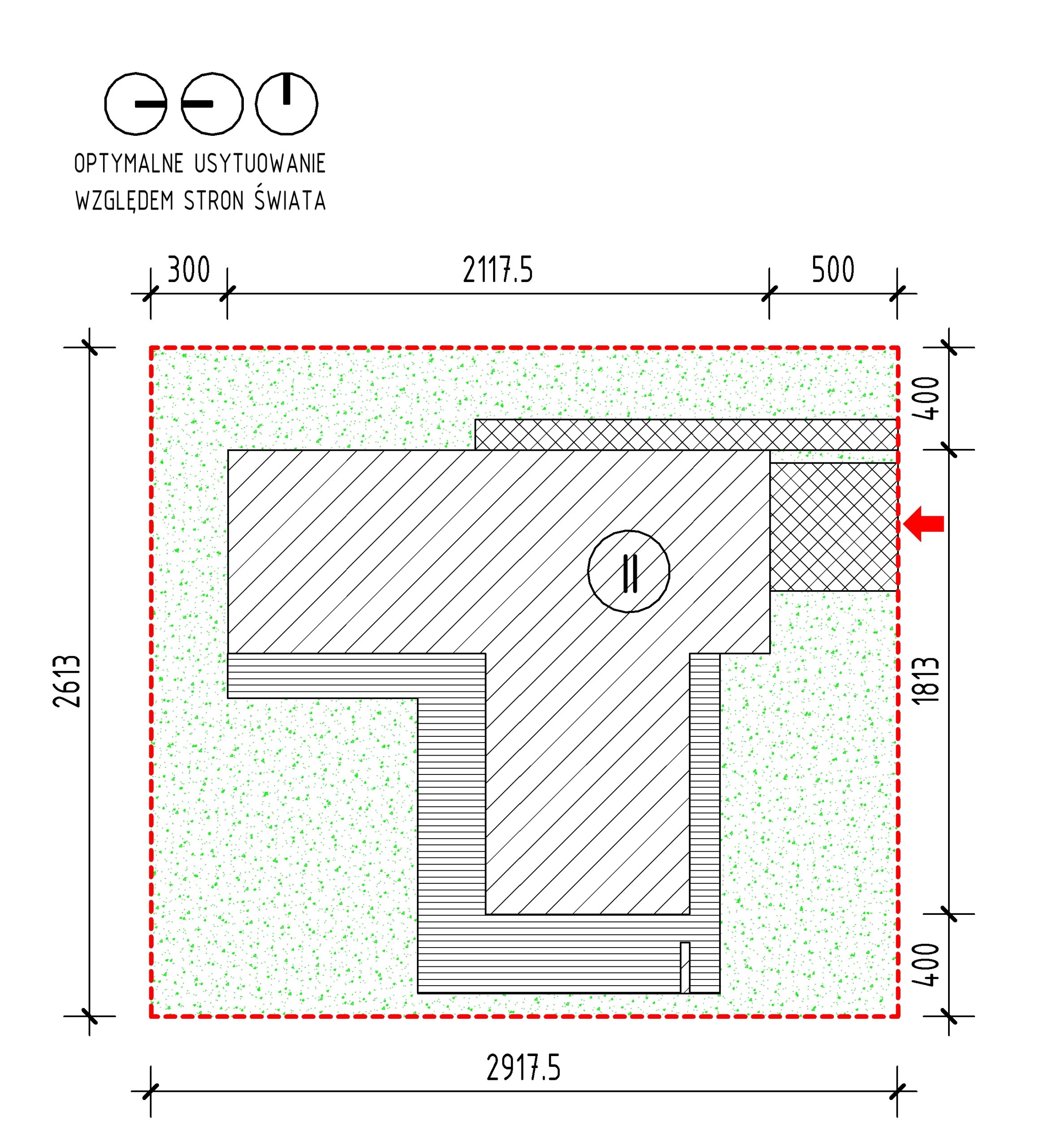

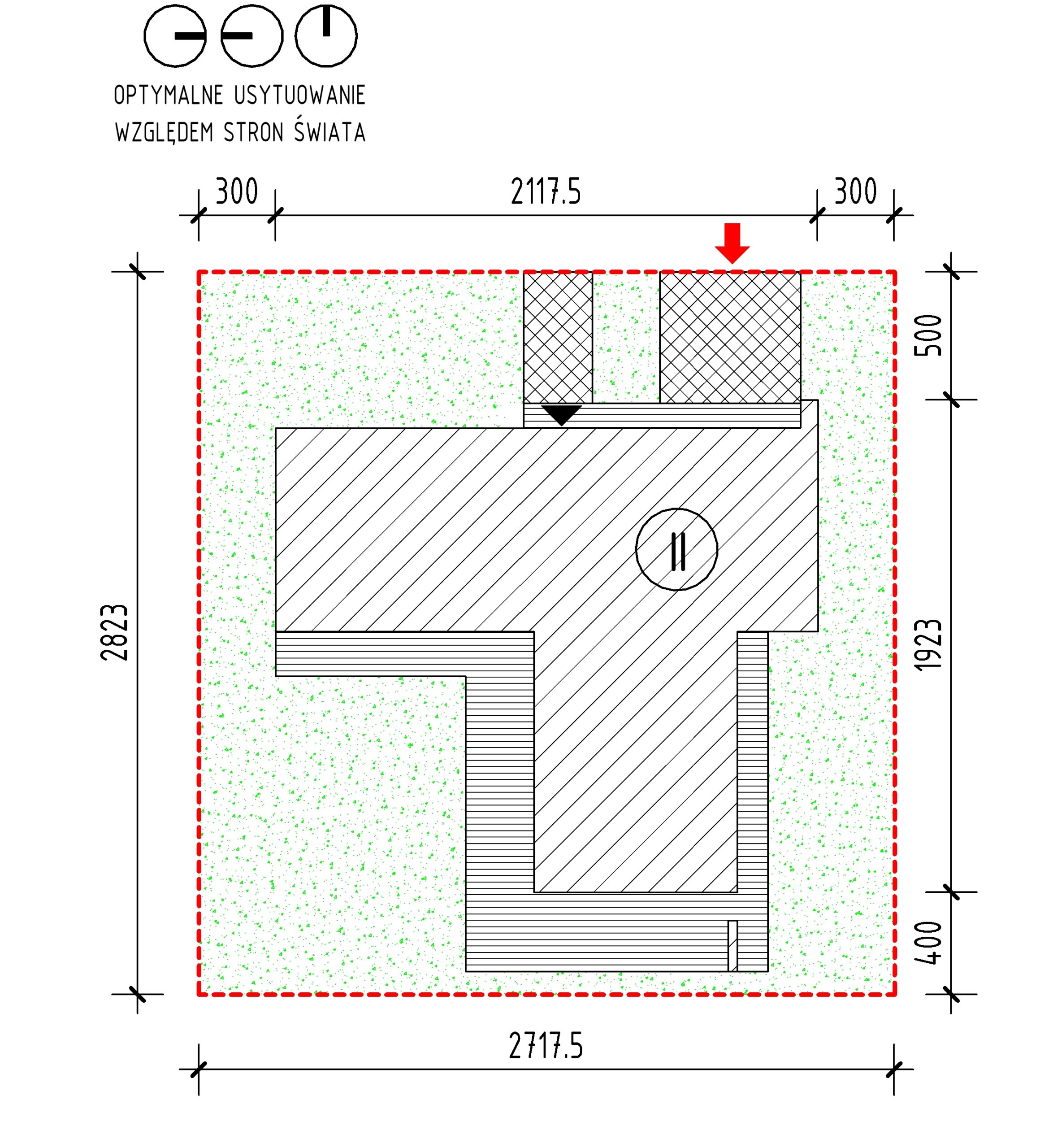

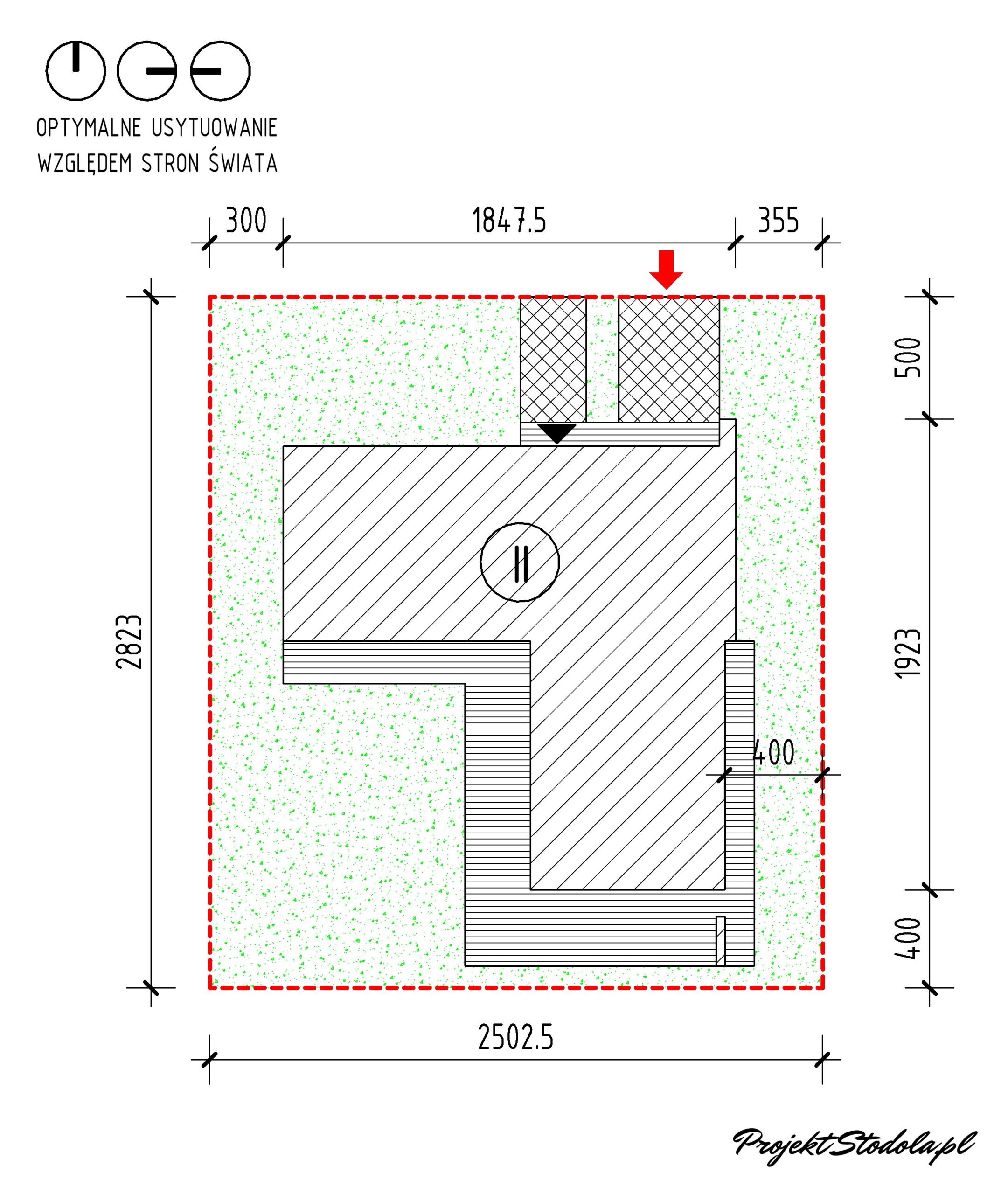

The drawing shows the minimum distances from the property boundary according to Polish building regulations. In your region, these distances may be different.









MINIMUM PLOT DIMENSIONS:

Due to the shape of the T-shaped building plan, the building can be situated in two variations on practically any plot. The ideal placement is with the entrance from the north, east, or west. Modifying the garage entrance to the side is also a very good option for plots with a southern entrance. When reducing the garage to one parking space, the design is suitable for narrower plots as well.

The drawing shows the minimum distances from the property boundary according to Polish building regulations. In your region, these distances may be different.





We can only provide an estimated cost of building a house in Poland. Prices in a given region may vary due to market conditions. For more information, please contact a local specialist. In the product description, you will find information about the main building materials and construction solutions adopted, which affect the construction cost.


PREFABRICATED BARN HOUSE

Are you pressed for time and want to build a barn house within 4-5 months? This is possible when constructing a house from prefabricated materials.

Prefabricated construction is about 15-25% more expensive than comprehensive traditional construction.

What do you gain in return? Among other things:

  • an ecological house made of natural materials
  • quick realization of the house even in 4-5 months, and thus also immunity to unstable prices on the market
  • minimal involvement in the construction – without the restriction of teams and materi
    greater usable area of the building due to the smaller thickness of the walls
  • a house situated on a foundation slab
  • guidance and advice from an experienced team

Barn Houses Ideas cooperates with contractor – Mabudo in the technology of precast concrete technology.

If you want to get detailed information about cooperation – contact us





2. Choose project add-ons

Project add-ons

Add-on descriptions

Files in .dwg

Project drawings in editable  .dwg format.

Cost $380







Additional visualizations

If you consider a different material for the facade, you can order an alternative version of visualizations according to your needs. This includes 2 views – 1 from the front and 1 from the garden – with different materials in .jpg format. This service applies only to standard projects without modifications. Delivery time is up to 2.5  weeks. In the Comments field, describe the materials you would like to see in your                      version of the facade.

Cost $250







3d model in .skp

Building model in editable .skp format with basic furnishings. Helpful for interior design

Cost $380

Pdf version

200

Interior design underlay in .dwg

380

Additional printed copy of the project

200

Additional visuals

250

Help
This is a additional  visualization for your house plan.

3d model of a building in .skp

380

Package type

Basic Package

This is basic information used to familiarize you with the project in detail. The package does not include detailed design solutions, only architectural drawings.

The package consists of:

  • Floor plans
  • Sections
  • Roof plan
  • Elevations with description of the materials
  • The most important project information
  • Architectural visualisation
  • Joinery schedule

Files in PDF format

If you purchase the Basic Package, you will receive a 25% discount on the Full Package, valid for 2 weeks.

Full Package

This is a complete project documentation - it contains all drawings needed to build our house.

The package consists of:

PDF files:

  • The content of Basic Package
  • Drawings & Description of:
    • Construction
    • Sanitary Installation
    • Electrical Installation

DWG files:

  • The Basic Package content

SKP files:

  • Building model

Basic PackageFull Package
Floor plansxx
Sectionsxx
Elevationsxx
Elevation Materials Schedulexx
Partition Typesxx
Windows Schedulexx
The most important project information with basic parametrsxx
Roof planxx
Architectural visualizationxx
Technical description of the buildingx
Sanitary Instalations - description & drawingsx
Mechanical ventilation systems plansPlumbing plansCentral heating systems plansx
Electrical Instalations - description & drawings:x
Plan with: switchboard, electrical sockets, lighting fixtures and switchesElectricity board schemeLighting protection systemx
Construction description & drawings:x
Structure plans (with reinforcement)Foundation planRoof Truss Detail Planx
Roff truss elements scheduleReinforcing steel scheduleConstruction detailsx
Energy performance characteristicsx
DWG files with the contents of the Basic Packagex
3d model in .skpx

Plan version

Standard Plan

Mirrored Plan

Plots have different shapes and entrances from different sides. To make it easier for you to adapt our warehouse plan to your plot of land, we offer you a choice between two versions of the warehouse plan: the standard plan and the mirror plan.

The most important factor in choosing between the two is the direction of the world from which the entrance is located. This determines which version of the plan will fit the most for your plot.

In the ‘Plot’ section of the product page, we provide a detailed description of our recommended entrance location. Take a look at this information and choose the variant that best suits your plot.
