*Illustrations on the page were prepared in metric units. Projects ordered to the United States will be prepared in feet. Waiting time for the project may be extended by several days
Barn House Smart
Size S [124 -190 m2]615 €
- Usable area:119,88 m²
- Garage area:41,80 m²
- Development area:207,14 m²
- Height of the building at the ridge:6,79 m
- Roof pitch:35°
Choose a package type:
Questions or want to customize the project? Contact us. Go to → Contact
The project price includes:
PROJECTS OPTIMIZED FOR CONSTRUCTION AND ENERGY EFFICIENCY
750 $0 $
PROJECT ADAPTED FOR AIR SOURCE HEAT PUMP AND UNDERFLOOR HEATING
750 $0 $
PROJECT WITH MECHANICAL VENTILATION AND HEAT RECOVERY
HOUSE PLANS:
-

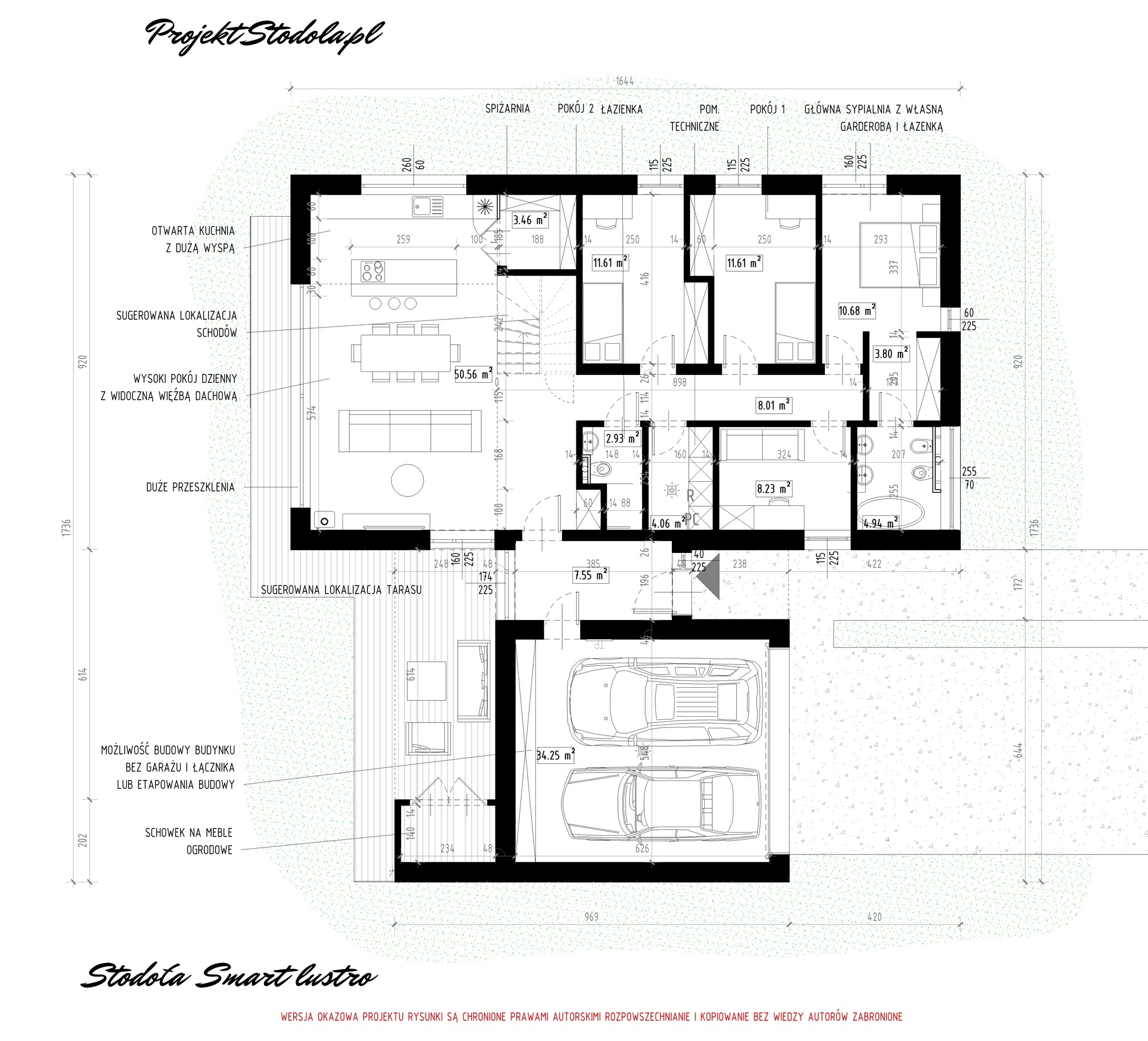

- Ground floor plan
-

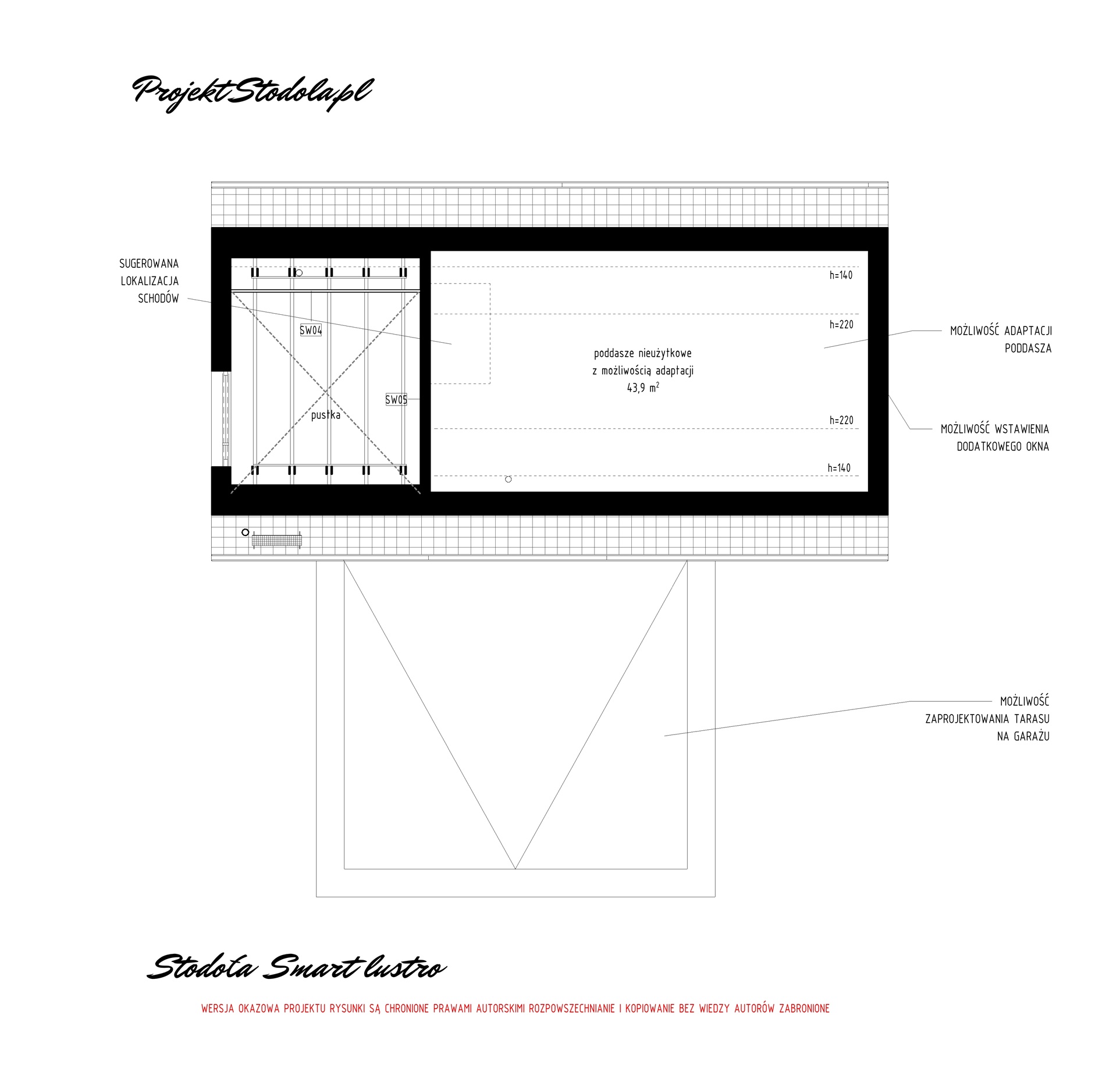

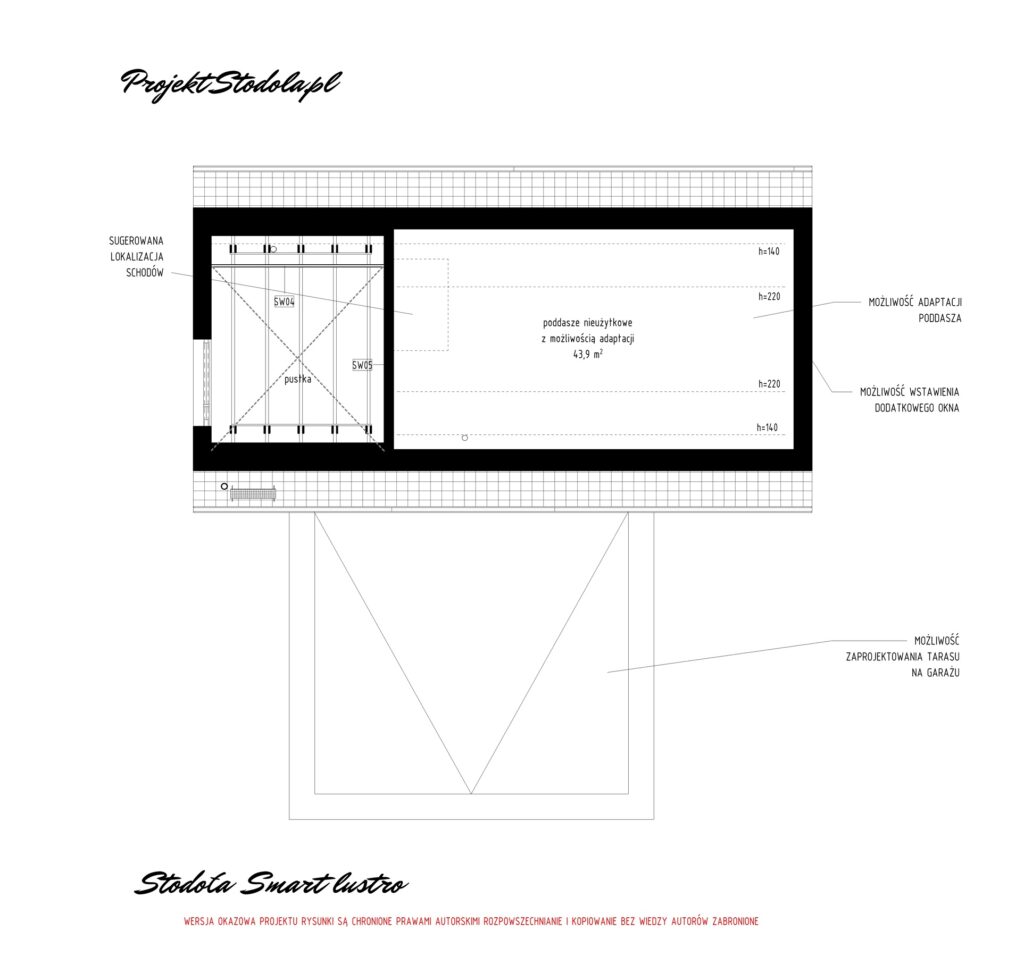

- Plan of the unused attic (possibility of adaptation)

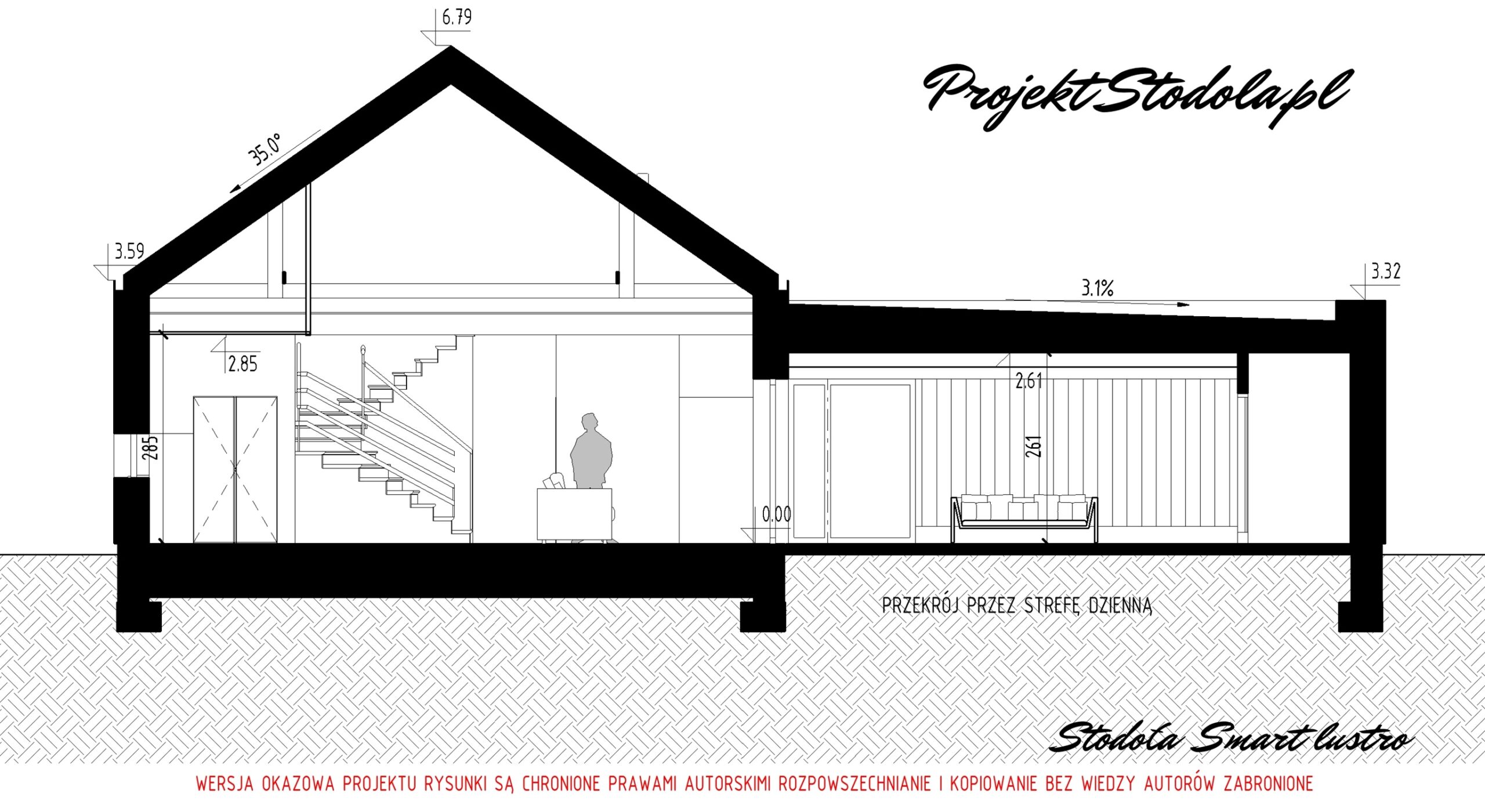

SCHEMATIC SECTIONS:
-
- Section A
-

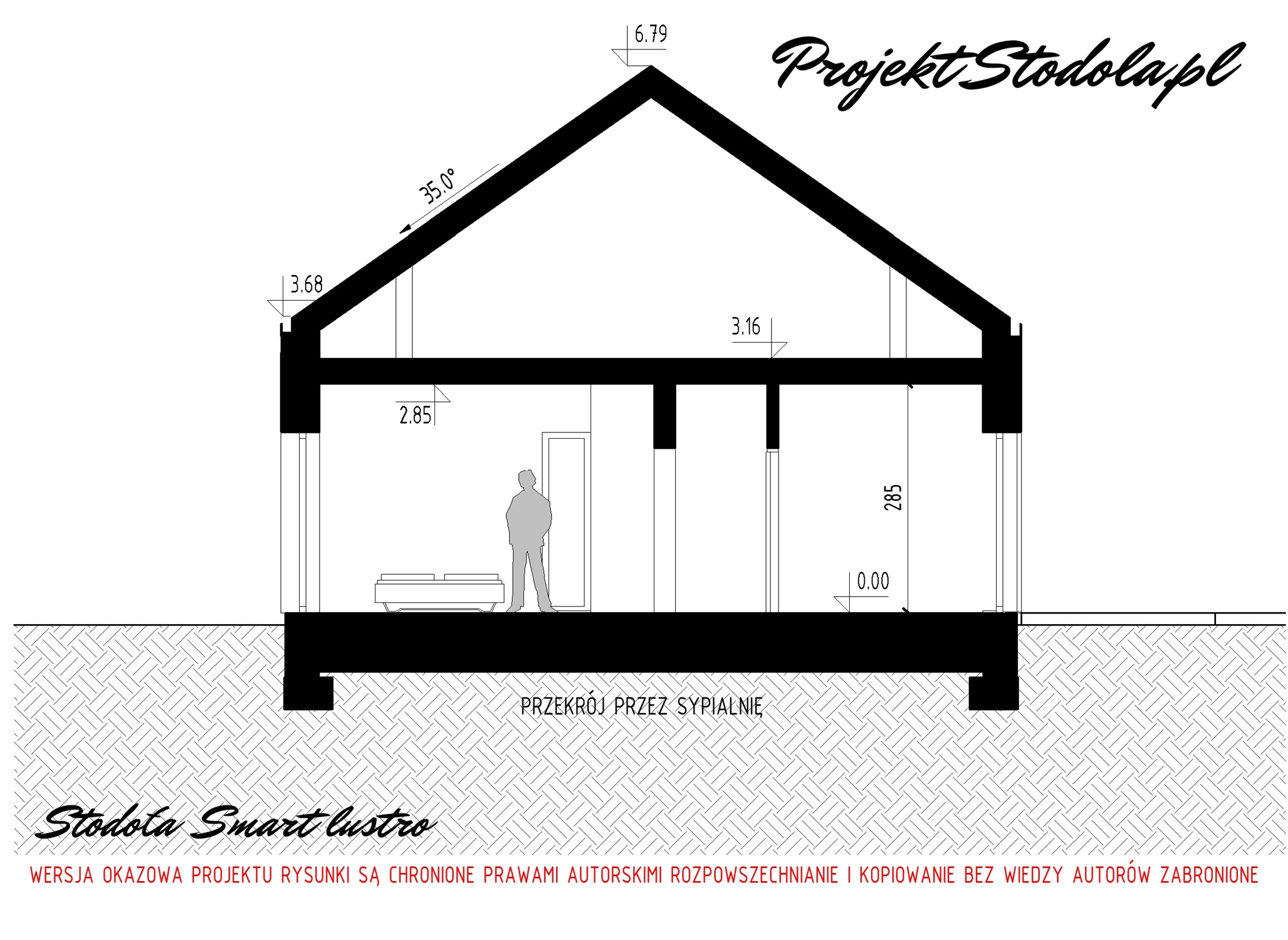

- Section B
FUNCTIONAL LAYOUT:
Barn House Smart is a meticulously designed project, optimized for construction efficiency, ergonomics, and exceptional energy efficiency. It was developed to maximize functionality and floor space relative to construction costs. This house is ideal for a family of four (2+2), and with the possibility of adapting the attic, it can comfortably accommodate a family of five.
You enter the house through a vestibule in the connecting section. This layout allows guests to be directed straight to the terrace without passing through the main living area. The connecting section links the main house structure with a spacious, double garage. The garage can be customized according to your needs – it can be converted into a single garage or a carport, depending on the requirements and the plot. From the connecting section, you enter directly into a large, high-ceilinged living area. This space includes a comfortable lounging area, a dining table, and a large kitchen with an island and pantry. A suggested location for stairs, in case the attic is adapted, is also provided near the kitchen. Under the stairs, there is a cloakroom/storage area, which can be expanded if the stairs are omitted. The entire living room is illuminated with large windows that open to the garden area of the plot. There is also direct access to a covered terrace located behind the garage.
The building is clearly divided into a day zone and a private night zone. The night zone includes a bathroom, a utility room, three rooms, and a master bedroom, which has its own private bathroom accessed through a walk-in closet
HOUSE PLANS:
-
- Ground floor plan
-
- Plan of the unused attic (possibility of adaptation)
SCHEMATIC SECTIONS:
-
- Section A
-
- Section B
FUNCTIONAL LAYOUT:
Barn House Smart is a meticulously designed project, optimized for construction efficiency, ergonomics, and exceptional energy efficiency. It was developed to maximize functionality and floor space relative to construction costs. This house is ideal for a family of four (2+2), and with the possibility of adapting the attic, it can comfortably accommodate a family of five.
You enter the house through a vestibule in the connecting section. This layout allows guests to be directed straight to the terrace without passing through the main living area. The connecting section links the main house structure with a spacious, double garage. The garage can be customized according to your needs – it can be converted into a single garage or a carport, depending on the requirements and the plot. From the connecting section, you enter directly into a large, high-ceilinged living area. This space includes a comfortable lounging area, a dining table, and a large kitchen with an island and pantry. A suggested location for stairs, in case the attic is adapted, is also provided near the kitchen. Under the stairs, there is a cloakroom/storage area, which can be expanded if the stairs are omitted. The entire living room is illuminated with large windows that open to the garden area of the plot. There is also direct access to a covered terrace located behind the garage.
The building is clearly divided into a day zone and a private night zone. The night zone includes a bathroom, a utility room, three rooms, and a master bedroom, which has its own private bathroom accessed through a walk-in closet
DESIGN CONSIDERATIONS::
BUILDING SHAPE:
This is simple single-story house designed in the modern barn style, rectangular in plan, covered with a symmetrical gable roof with a 35° pitch. An attached vestibule and a double garage are connected to the main body of the building on the side. This modular approach allows for phased construction, offering the flexibility to forgo the vestibule and garage entirely, or to convert the garage into a carport with a covered terrace in the garden area. Dividing the structure into three modules provides many possibilities to adjust the investment to the budget and needs. The barn is maintained in a uniform and minimalist style, with a striking large glass façade on the gable wall. This façade is divided into two sections, allowing the installation of external blinds on the lower part.
The building features a very simple structural layout based on four axes, a straightforward gable roof, and a wooden ceiling supported by prefabricated roof trusses, making the house easy and economical to build.
The facade uses natural shades, with light vertical wooden cladding combined with white plaster. There is the option to adjust the materials to reflect the local context or the investor’s personal preferences.
The base project is designed for plots with a rear façade view. Urbanistically, the building is best suited for a plot with an entrance from the north, but it can also fit plots with entrances from the west or east.
BUILDING STANDARDS AND CONSTRUCTION TECHNOLOGY
The building is designed to meet energy-saving standards in accordance with the 2021 technical conditions, featuring underfloor heating via an air heat pump and mechanical ventilation with heat recovery.
- MASONRY WALLS: Two-layer – aerated concrete block + graphite styrofoam, partition walls are silicate
- FACADE: Light wooden cladding, plaster, dark sheet metal
- CEILING: Wooden ceiling, bottom chord of roof trusses
- STAIRS: Prefabricated wooden stairs
- ROOF: Ceramic or concrete roof tiles
Additionally, the simple gable roof allows for the installation of photovoltaic panels on the southern and western slopes. The visualizations show 21 panels generating approximately 8 kW of power.
MINIMUM PLOT DIMENSIONS:
Due to the compact shape of the building, it can be situated on the plot in several variations. The optimal location is with the entrance from the northern side of the plot, but it will also work well with entrances from the eastern and western sides. The project allows for the option to forgo the garage or to relocate it within changes to the base design. The first option involves siting the building with the garage entrance on the shorter side, the second option with a single-car garage, while options 2 and 3 involve no garage and require a minimal plot size for such a scenario.

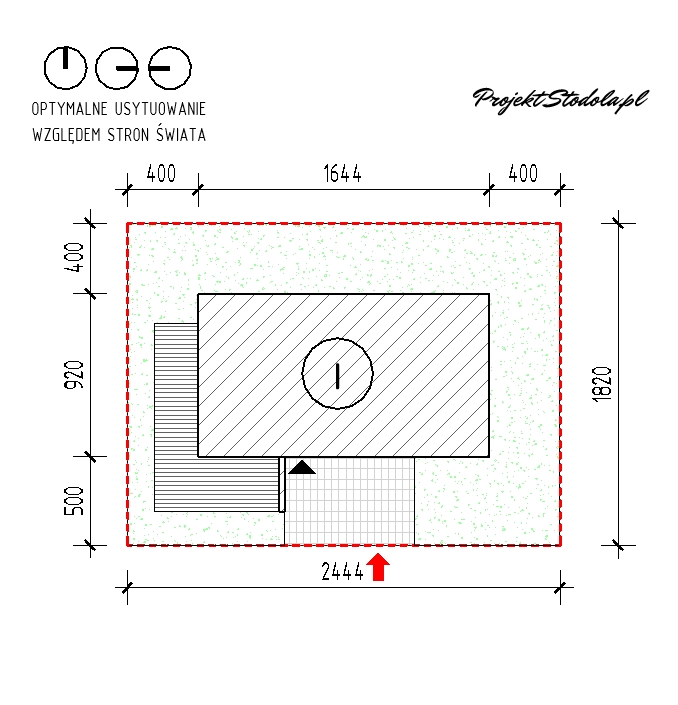

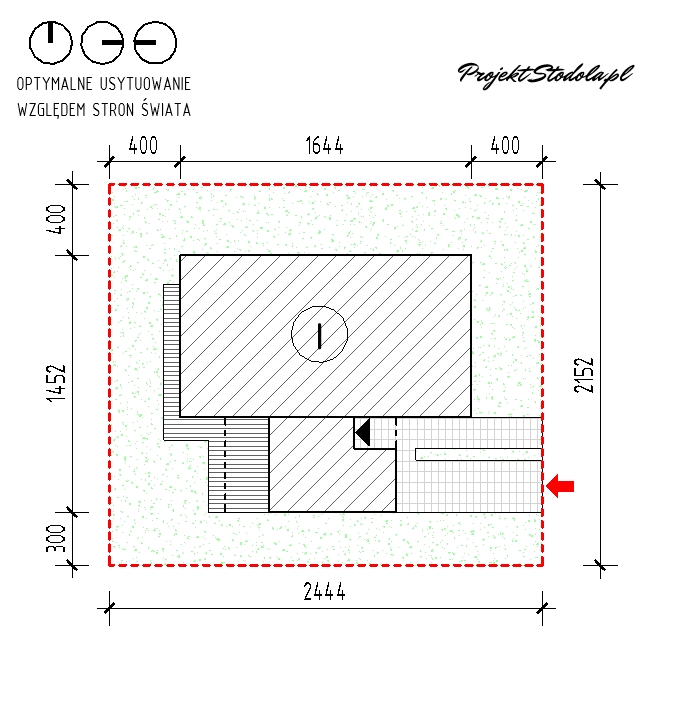

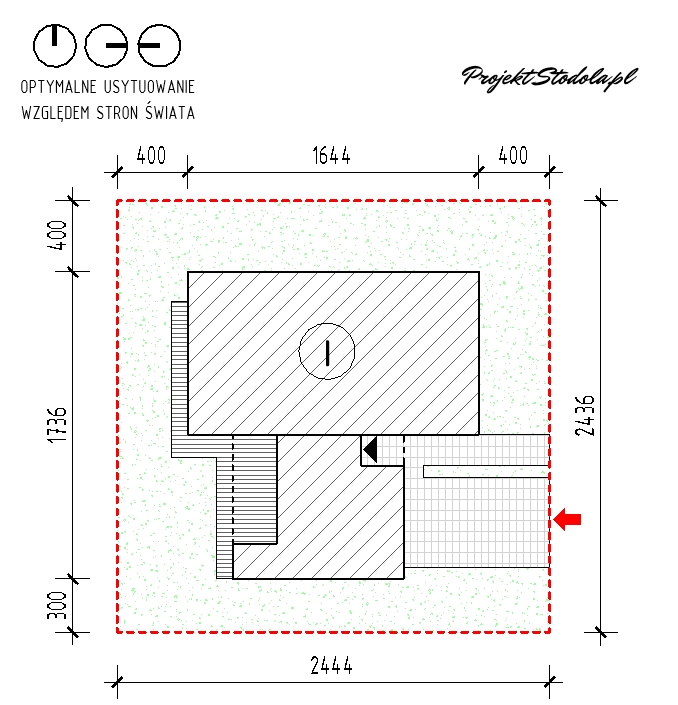

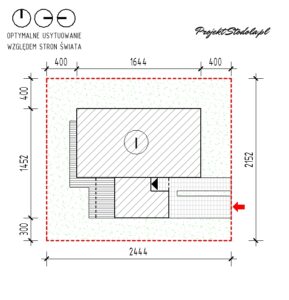

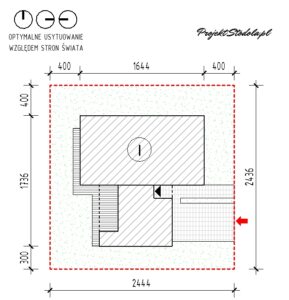

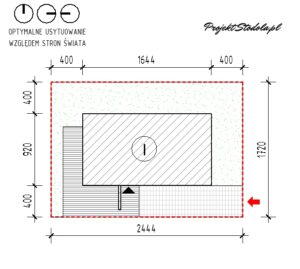

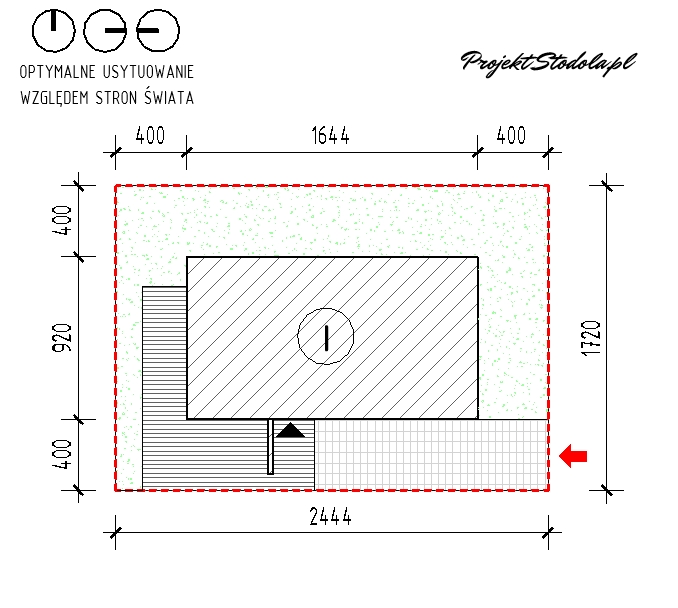

The drawing shows the minimum distances from the property boundary according to Polish building regulations. In your region, these distances may be different.
-
- Variant 1: 2-stall garage
-
- Variant 2: 1-stall garage
-
- Variant 3: without garage
-
- Variant 4: without garage
MINIMUM PLOT DIMENSIONS::
Due to the compact shape of the building, it can be situated on the plot in several variations. The optimal location is with the entrance from the northern side of the plot, but it will also work well with entrances from the eastern and western sides. The project allows for the option to forgo the garage or to relocate it within changes to the base design. The first option involves siting the building with the garage entrance on the shorter side, the second option with a single-car garage, while options 2 and 3 involve no garage and require a minimal plot size for such a scenario.
The drawing shows the minimum distances from the property boundary according to Polish building regulations. In your region, these distances may be different.
-
- Variant 1: 2-stall garageskowy
-
- Variant 2: 1-stall garage
-
- Variant 3: without garage
-
- Variant 4: without garage
KOSZT BUDOWY
Dobrze wiemy jak w dzisiejszych czasach trudno jest oszacować koszty budowy, szczególnie, że potrafią się one zmieniać z miesiąca na miesiąc. Bardzo dbamy o to, by nasze kosztorysy były jak najbardziej dokładne. Wyceniamy projekty bazując na sprawdzonych technologiach i dobrych materiałach, gdyż one gwarantują trwałość budynku i bezawaryjne funkcjonowanie. Nie zaniżamy cen. Projektując stosujemy proste rozwiązania, bez “ozdobników”, by nasze projekty z założenia nie były drogie w budowie, miały duże możliwości etapowania i wariantowania pracy.
Do stodoły M znajdziesz na blogu całe zestawienie wszystkich materiałów i poniesione przez nas koszty budowy, sprawdź także wpis o kosztach budowy z 2022 lub inne nasze realizacje. Możesz także skontaktować się z innymi inwestorami, którzy często są aktywni na naszej grupie fb- Projekt Stodoła- budowa domu typu stodoła.
KOSZTORYS UPROSZCZONY
STAN ZERO : 104 605 zł
STAN SUROWY ZAMKNIĘTY: 329 580 zł
STAN DEWELOPERSKI: 551 991 zł
- kwoty netto, poziom cen III kwartał 2022, stan deweloperski zgodny z projektem, materiały dobrej jakości. W cenie zawarte są: instalacja ogrzewania podłogowego, powietrzna pompa ciepła, wentylacja mechaniczna z rekuperacją, stolarka okienna w dobrym standardzie z oknem HS, posadzki, tynki, wykończenie elewacji wg wizualizacji.
PREFABRYKOWANA STODOŁA
Zależy Ci na czasie, chciałbyś zbudować Stodołę nawet w 4-5 miesięcy? Jest to możliwe w przypadku budowy domu z prefabrykatu.
Budowa z prefabrykatów jest droższa o ok. 15-25% w stosunku do kompleksowej, tradycyjnej budowy.
Co zyskujesz w zamian? Między innymi:
- ekologiczny dom z naturalnych materiałów
- szybką realizację domu nawet w 4-5 miesięcy, a co za tym idzie także odporność na niestabilne ceny na rynku;
- małe zaangażowanie w budowę- bez ogranizowania ekip i materiałów;
- większą powierzchnię użytkową budynku dzięki mniejszej grubości ścian;
- dom posadowiony na płycie fundamentowej
- opieka i doradztwo doświadczonej kadry
Projekt Stodoła współpracuje z firmami wykonawczymi w technologii ciężkiego prefabrykatu drewnianego (na obszarze całej Polski) oraz prefabrykatu keramzytowego (na obszarze w promieniu 100km od Gdańska, Warszawy i Wrocławia).
Jeśli interesuje Cię ten temat napisz do nas maila z informacją odnośnie lokalizacji inwestycji i technologii, którą jesteś zainteresowany/a na prefabrykat@projektstodola.pl
2. Choose project add-ons
Project add-ons
Add-on descriptions
Files in .dwg
Project drawings in editable .dwg format.
Cost $380
Additional visualizations
If you consider a different material for the facade, you can order an alternative version of visualizations according to your needs. This includes 2 views – 1 from the front and 1 from the garden – with different materials in .jpg format. This service applies only to standard projects without modifications. Delivery time is up to 2.5 weeks. In the Comments field, describe the materials you would like to see in your version of the facade.
Cost $250
3d model in .skp
Building model in editable .skp format with basic furnishings. Helpful for interior design
Cost $380
Additional printed copy of the project
200 €
Połączenie instalacji z kominkiem z płaszczem wodnym
900 €
Projekt wykonawczy wentylacji mechanicznej z rekuperacją
900 €
Projekt wykonawczy ogrzewania podłogowego z pompą ciepła
900 €
Smart Home Konsultacja ze specjalistą
615 €
photovoltaic project
500 €
Pdf version
200 €
Additional visuals
250 €
This is a additional visualization for your house plan.
3d model of a building in .skp
380 €
Package type
Basic Package
This is basic information used to familiarize you with the project in detail. The package does not include detailed design solutions, only architectural drawings.
The package consists of:
- Floor plans
- Sections
- Roof plan
- Elevations with description of the materials
- The most important project information
- Architectural visualisation
- Joinery schedule
Files in PDF format
If you purchase the Basic Package, you will receive a 25% discount on the Full Package, valid for 2 weeks.Full Package
This is a complete project documentation - it contains all drawings needed to build our house.
The package consists of:
PDF files:
- The content of Basic Package
- Drawings & Description of:
- Construction
- Sanitary Installation
- Electrical Installation
DWG files:
- The Basic Package content
SKP files:
- Building model
| Basic Package | Full Package | |||
|---|---|---|---|---|
| Floor plans | x | x | ||
| Sections | x | x | ||
| Elevations | x | x | ||
| Elevation Materials Schedule | x | x | ||
| Partition Types | x | x | ||
| Windows Schedule | x | x | ||
| The most important project information with basic parametrs | x | x | ||
| Roof plan | x | x | ||
| Architectural visualization | x | x | ||
| Technical description of the building | x | |||
| Sanitary Instalations - description & drawings | x | |||
| Mechanical ventilation systems plans | Plumbing plans | Central heating systems plans | x | |
| Electrical Instalations - description & drawings: | x | |||
| Plan with: switchboard, electrical sockets, lighting fixtures and switches | Electricity board scheme | Lighting protection system | x | |
| Construction description & drawings: | x | |||
| Structure plans (with reinforcement) | Foundation plan | Roof Truss Detail Plan | x | |
| Roff truss elements schedule | Reinforcing steel schedule | Construction details | x | |
| Energy performance characteristics | x | |||
| DWG files with the contents of the Basic Package | x | |||
| 3d model in .skp | x |
Plan version
Standard Plan
Mirrored Plan
Plots have different shapes and entrances from different sides. To make it easier for you to adapt our warehouse plan to your plot of land, we offer you a choice between two versions of the warehouse plan: the standard plan and the mirror plan.
The most important factor in choosing between the two is the direction of the world from which the entrance is located. This determines which version of the plan will fit the most for your plot.
In the ‘Plot’ section of the product page, we provide a detailed description of our recommended entrance location. Take a look at this information and choose the variant that best suits your plot.
You can see all our project implementations here:
COMPLETED HOUSES
The Barn House Idea is not just a blog and ready-made projects; it’s a way of thinking about construction, about choices and compromises to achieve the desired goal with full satisfaction. The Barn Project is about minimalism, functionality, simplicity, and energy efficiency, all guided by construction economics.
Our Barn House M has been inhabited for 6 years now. We didn’t expect that our construction and design efforts, which we document on the blog and through social media, would create a community around this idea. It could be said that The Barn Project is more than just projects; it’s also a forum for exchanging opinions and experiences. It’s a community that you can also be a part of.
Check out the social media profiles of investors building houses according to our projects as well:
Barn House S @jak_możesz_to_sie_nie_buduj
Barn House S+ :
@nasza_splus
@stodola_clt
@stodola_kolo_kamienia
Barn House S+ Premium :
@s_premium_stodola
@troche.inna.stodola
@stodola_splus_premium
@nasza_polna_stodola
@stodola_premium
@budowajakzakare
@stodola_premium_podlasem
@stodolaspluspremiumnawsi
Barn House S+ Premium after modifications 2 @kolejna_stodola
Barn House S+ Exclusive after modifications @w_mojej_parterowce_
Barn House S + Long:
@stodola_wzg
@stodola.ulipy
@spluslong
@naszalongbarn
Barn House M @nad_morze.m_stodola
Barn House M parterowa @m_parterowa
Barn House M-L @naszeklepisko
Barn House M-L after modifications 2 @stodola_dziennik_budowy
Barn House with Atrium :
@sosnowe_atrium
@projekt_stodola_z_atrium
Barn House Optimum @iznowustodola
Barn House Double @projektpodwojnastodola
Barn House Smart + @moja_smart_stodola
Barn House L Compact @nasza_stodola_l_compact
Barn House L+ @oursecretbarn
