*Illustrations on the page were prepared in metric units. Projects ordered to the United States will be prepared in feet. Waiting time for the project may be extended by several days
Barn House Double +
Atrium Series$ 925.80
- Usable area:200,01 m²
- Garage area:40,04 m²
- Development area:298,73 m²
- Height of the building at the ridge:6,45 m
- Roof pitch:40°
Choose a package type:
Questions or want to customize the project? Contact us. Go to → Contact
The project price includes:
PROJECTS OPTIMIZED FOR CONSTRUCTION AND ENERGY EFFICIENCY
750 $0 $
PROJECT ADAPTED FOR AIR SOURCE HEAT PUMP AND UNDERFLOOR HEATING
750 $0 $
PROJECT WITH MECHANICAL VENTILATION AND HEAT RECOVERY
PLAN DOMU:
PRZEKROJE SCHEMATYCZNE:
UKŁAD FUNKCJONALNY:
A design in the style of “two barns” connected by a linking passage. The building consists of two parallel volumes with gabled roofs, joined by a flat-roofed entrance and passageway. The building’s layout is simple and functional, with distinct areas: a private bedroom wing, a daytime living area, and a connecting entrance space. The entrance link serves as the entryway and includes a spacious, well-lit foyer that opens onto a patio between the buildings. This foyer connects to a large walk-in closet, a utility room, and a double garage.
An entry through the pantry directly to the kitchen offers a functional solution for daily convenience. Upon entering, there’s a direct view of the inner green patio. In the daytime area, there is an open kitchen with a large island and pantry. This space is open-concept, featuring high ceilings up to the roof structure and expansive windows that bring ample natural light. The dining and living areas feel open and bright, with the living room providing views of the surrounding property from three sides and opening directly onto the terrace.
Between the two barn volumes, an inner atrium is designed, connected to an intimate, private terrace that also opens visually onto the property. This terrace is partially covered, offering shaded outdoor space. The bedroom wing is set apart from the main living areas to create a sense of privacy. In this area, there are four bedrooms, a bathroom, a laundry room, and a master suite complete with its own walk-in closet and bathroom. Both the living room and master bedroom provide access to the internal terrace between the two buildings.
Additionally, the space above the kitchen can be adapted into a small mezzanine if the ceiling is modified to concrete, adding even more utility to this modern barn-style home.
HOUSE PLAN:

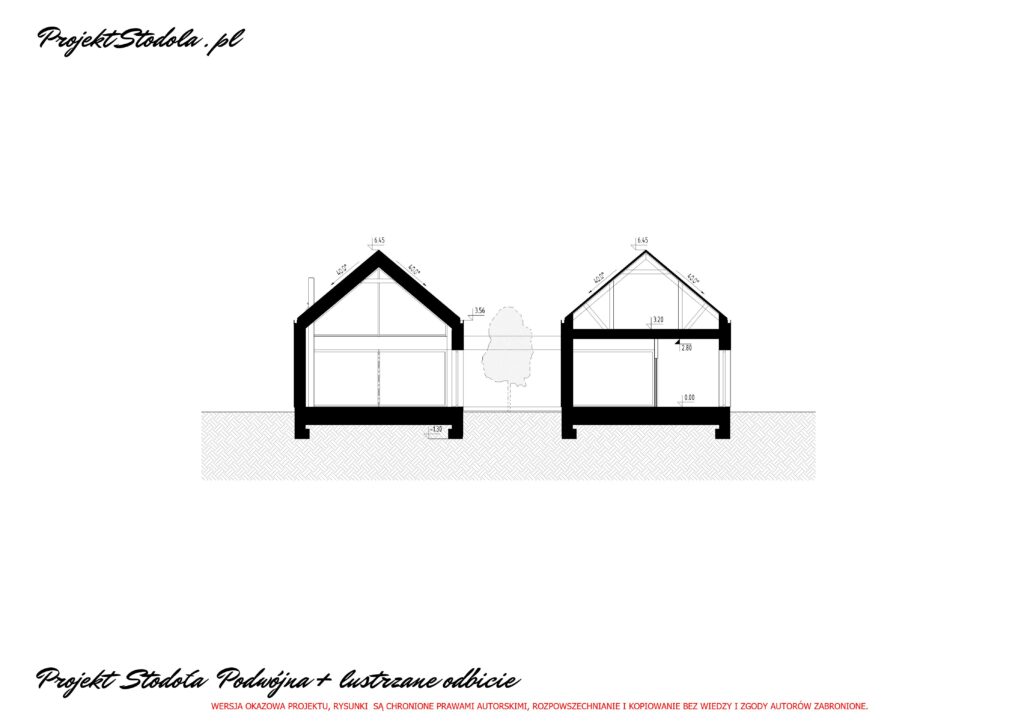

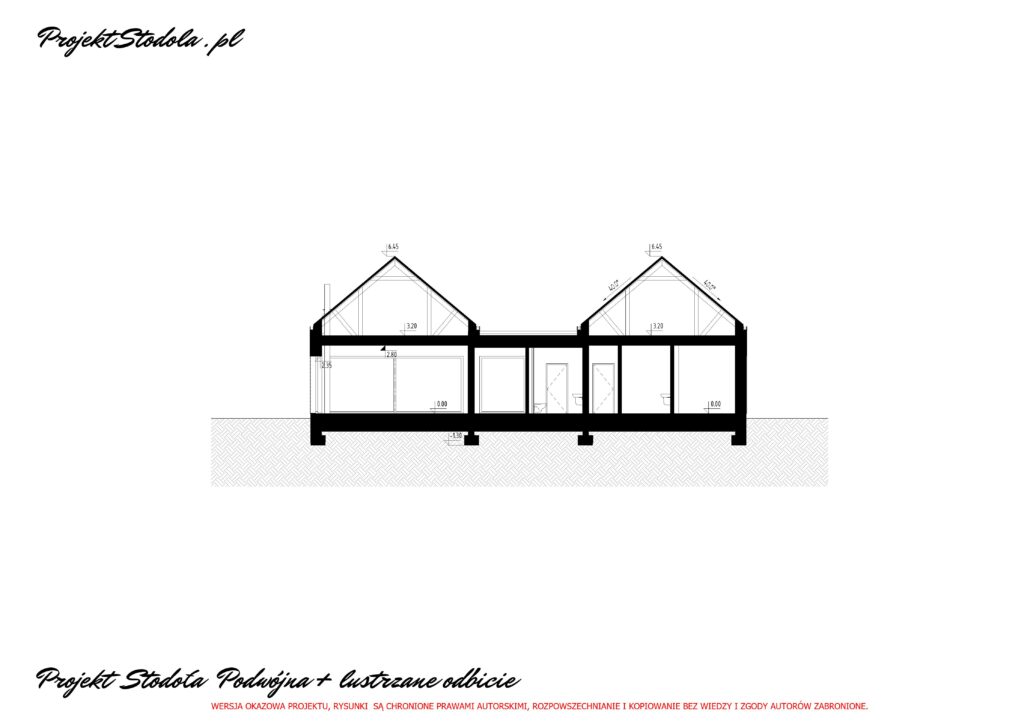

SCHEMATIC SECTIONS:
FUNCTIONAL LAYOUT:
A design in the style of “two barns” connected by a linking passage. The building consists of two parallel volumes with gabled roofs, joined by a flat-roofed entrance and passageway. The building’s layout is simple and functional, with distinct areas: a private bedroom wing, a daytime living area, and a connecting entrance space. The entrance link serves as the entryway and includes a spacious, well-lit foyer that opens onto a patio between the buildings. This foyer connects to a large walk-in closet, a utility room, and a double garage.
An entry through the pantry directly to the kitchen offers a functional solution for daily convenience. Upon entering, there’s a direct view of the inner green patio. In the daytime area, there is an open kitchen with a large island and pantry. This space is open-concept, featuring high ceilings up to the roof structure and expansive windows that bring ample natural light. The dining and living areas feel open and bright, with the living room providing views of the surrounding property from three sides and opening directly onto the terrace.
Between the two barn volumes, an inner atrium is designed, connected to an intimate, private terrace that also opens visually onto the property. This terrace is partially covered, offering shaded outdoor space. The bedroom wing is set apart from the main living areas to create a sense of privacy. In this area, there are four bedrooms, a bathroom, a laundry room, and a master suite complete with its own walk-in closet and bathroom. Both the living room and master bedroom provide access to the internal terrace between the two buildings.
Additionally, the space above the kitchen can be adapted into a small mezzanine if the ceiling is modified to concrete, adding even more utility to this modern barn-style home.
When one barn isn’t enough, a Double Barn House should do the trick!
BUILDING STANDARD AND CONSTRUCTION TECHNOLOGY
The building was designed to an energy-efficient standard in accordance with Technical Conditions 2021 – underfloor heating via an air source heat pump, mechanical ventilation with recuperation.
Walls: Double-layer construction with aerated concrete blocks and EPS (expanded polystyrene) insulation for thermal efficiency. Interior walls are made from durable silicate blocks for added stability and soundproofing.
Facade: Finished with natural-colored clinker tiles combined with dark silicone plaster, giving the exterior a modern, textured look with excellent weather resistance.
Ceiling: Wooden structure including a wooden roof truss, with an option for prefabrication, which simplifies and speeds up construction.
Stairs: No interior stairs are included in the design, though there is an option to add modular stairs or an access hatch to the non-usable attic.
Roof: The gabled roof is finished with either flat concrete or ceramic tiles, providing a sleek, minimalist profile.
The simple, double-pitched roof design allows for the installation of solar panels on the southern and western slopes. Visualizations show 21 panels capable of generating approximately 8 kW of power, contributing to the home’s energy efficiency.
SHAPE:
MINIMUM PLOT DIMENSIONS:
The building is suitable for plots with access from any direction, but the most advantageous positioning is to have the entrance from the north or west.
The drawing shows the minimum distances from the property boundary according to Polish building regulations. In your region, these distances may be different.
MINIMUM PLOT DIMENSIONS:
The building is suitable for plots with access from any direction, but the most advantageous positioning is to have the entrance from the north or west.
The drawing shows the minimum distances from the property boundary according to Polish building regulations. In your region, these distances may be different.
2. Choose project add-ons
Project add-ons
Add-on descriptions
Files in .dwg
Project drawings in editable .dwg format.
Cost $380
Additional visualizations
If you consider a different material for the facade, you can order an alternative version of visualizations according to your needs. This includes 2 views – 1 from the front and 1 from the garden – with different materials in .jpg format. This service applies only to standard projects without modifications. Delivery time is up to 2.5 weeks. In the Comments field, describe the materials you would like to see in your version of the facade.
Cost $250
3d model in .skp
Building model in editable .skp format with basic furnishings. Helpful for interior design
Cost $380
Additional visuals
$ 289.31
This is a additional visualization for your house plan.
3d model of a building in .skp
$ 439.76
Interior design underlay in .dwg
$ 439.76
Package type
Basic Package
This is basic information used to familiarize you with the project in detail. The package does not include detailed design solutions, only architectural drawings.
The package consists of:
- Floor plans
- Sections
- Roof plan
- Elevations with description of the materials
- The most important project information
- Architectural visualisation
- Joinery schedule
Files in PDF format
If you purchase the Basic Package, you will receive a 25% discount on the Full Package, valid for 2 weeks.Full Package
This is a complete project documentation - it contains all drawings needed to build our house.
The package consists of:
PDF files:
- The content of Basic Package
- Drawings & Description of:
- Construction
- Sanitary Installation
- Electrical Installation
DWG files:
- The Basic Package content
SKP files:
- Building model
| Basic Package | Full Package | |||
|---|---|---|---|---|
| Floor plans | x | x | ||
| Sections | x | x | ||
| Elevations | x | x | ||
| Elevation Materials Schedule | x | x | ||
| Partition Types | x | x | ||
| Windows Schedule | x | x | ||
| The most important project information with basic parametrs | x | x | ||
| Roof plan | x | x | ||
| Architectural visualization | x | x | ||
| Technical description of the building | x | |||
| Sanitary Instalations - description & drawings | x | |||
| Mechanical ventilation systems plans | Plumbing plans | Central heating systems plans | x | |
| Electrical Instalations - description & drawings: | x | |||
| Plan with: switchboard, electrical sockets, lighting fixtures and switches | Electricity board scheme | Lighting protection system | x | |
| Construction description & drawings: | x | |||
| Structure plans (with reinforcement) | Foundation plan | Roof Truss Detail Plan | x | |
| Roff truss elements schedule | Reinforcing steel schedule | Construction details | x | |
| Energy performance characteristics | x | |||
| DWG files with the contents of the Basic Package | x | |||
| 3d model in .skp | x |
Plan version
Standard Plan
Mirrored Plan
Plots have different shapes and entrances from different sides. To make it easier for you to adapt our warehouse plan to your plot of land, we offer you a choice between two versions of the warehouse plan: the standard plan and the mirror plan.
The most important factor in choosing between the two is the direction of the world from which the entrance is located. This determines which version of the plan will fit the most for your plot.
In the ‘Plot’ section of the product page, we provide a detailed description of our recommended entrance location. Take a look at this information and choose the variant that best suits your plot.
